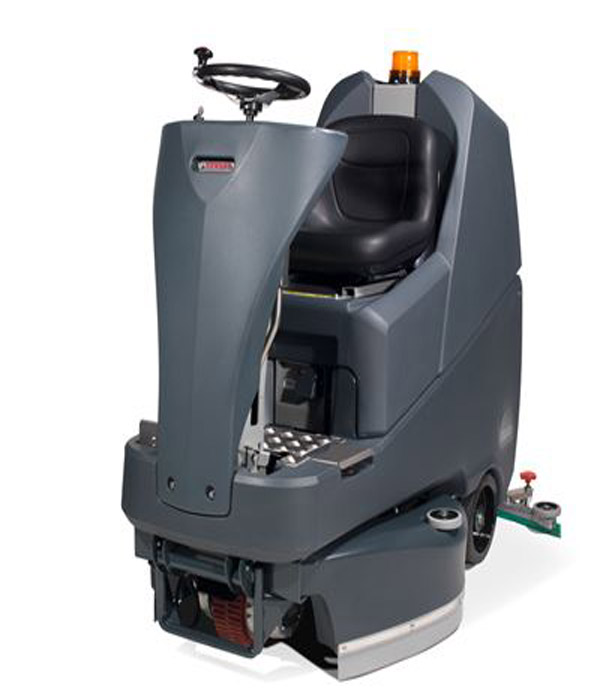

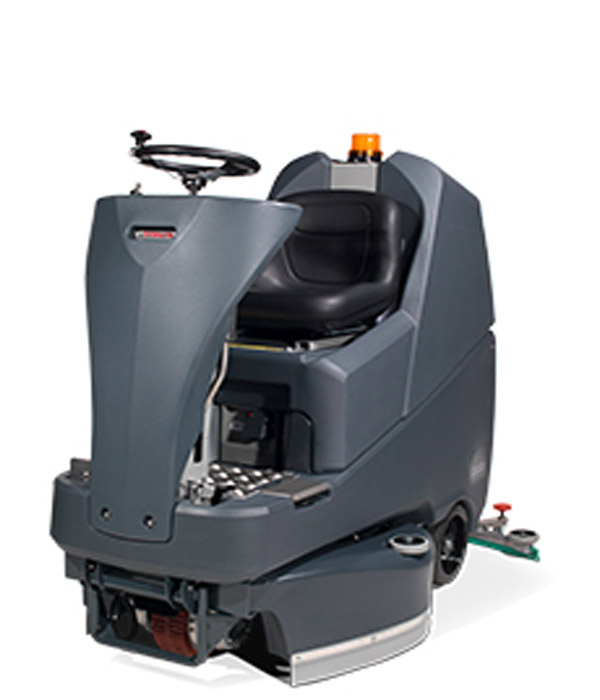

Ride on Scrubber Dryer TTV678G

Brush Motor Power

3 x 24V 400 W

Vacuum Motor Power

24V 600 W

Power

6 x 12V (24V) = 300Ah / 8 x 12V (24V) = 400Ah

Run Time

300Ah = 3.5 Hrs / 400Ah = 4.5 Hrs

Traction Drive

600 W

Transit Speed

7.0 km/h

Cleaning Speed

3.5 km/h

Climbing Gradient

11%

Scrub Width

650 / 750 / 850 mm

Brush Speed

50 / 100 / 150 / 200 rpm

Water Capacity

120L

Nuchem Capacity

Optional 5L

Water Flow Rate

Variable

Weight

(Ready to use inc full tank) 300Ah = 620 kg, 400 Ah = 686 kg

Size

1055 x 1748 x 1422mm
